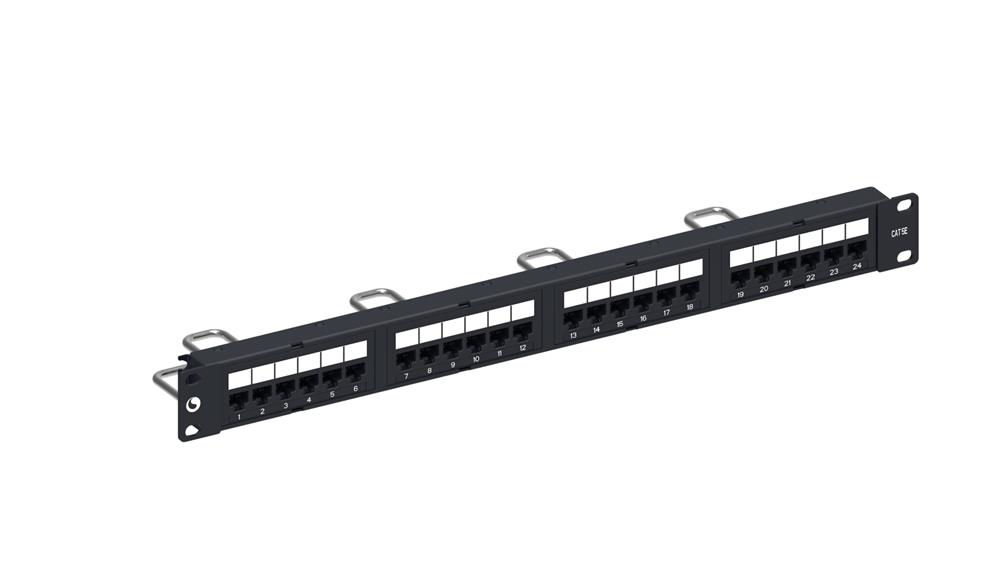

CAT5e PATCH PANEL 24PORT KRONE (1U/PCB)

Dimensions:

Depth: 119.38 mm,4.70 in
Diameter Over Dielectric,maximum: 1.168 mm,0.046 in
Diameter Over Dielectric,minimum: 0.762 mm,0.030 in
Height: 44.45 mm,1.75 in
Width: 482.60 mm,19.00 in

Electrical Specifications:

ANSI/TIA Category: 5e
Current Rating: 1.5 A @ 20 °C,1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, conductive surface: 1500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact: 1000 Vac @ 60 Hz
Insulation Resistance, minimum: 500 MOhm

Environmental Specifications:

Flammability Rating: UL 94 V-0
Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity: Up to 95%, non-condensing
Safety Standard: cUL,RCM,UL
Storage Temperature: -40 °C to +70 °C (-40 °F to +158 °F)

General Specifications:

Total Ports,quantity: 24
Cable Type: Unshielded
Color:Black
Modules, quantity: 4
Package Quantity: 1
Rack Type: EIA 19 in
Rack Units: 1

Mechanical Specifications:

Conductor Gauge, solid: 22 AWG,24 AWG
Conductor Gauge, stranded: 22 AWG,24 AWG
Conductor Type: Solid,Stranded
Contact Plating Material: Precious metals
Material Type: High-impact,flame retardant,thermoplastic,Powder-coated steel
Plug Insertion Life,minimum: 750 times
Plug Insertion Life,test plug: IEC 60603-7 compliant plug
Plug Retention Force, minimum: 30 lbf,133 N
Termination Contact Plating: Nickel
Termination Type: IDC
Wiring: T568A,T568B
